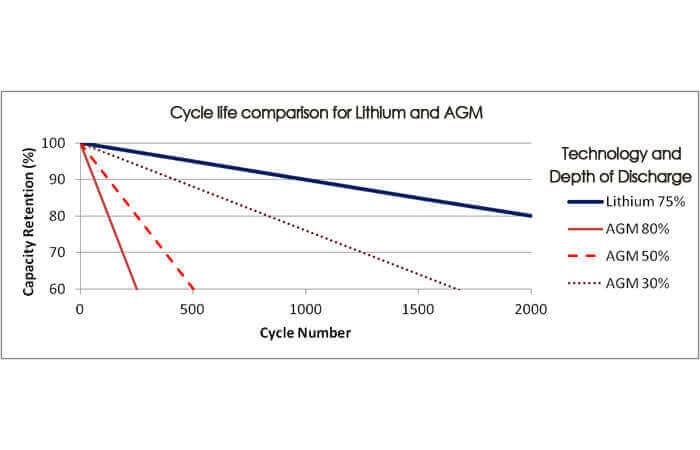

Discharge Curve Of Lead Acid Battery. The cost of ownership when you consider the cycle, further increases the value of the lithium battery when compared to a lead acid battery. Regular lithium battery and a av line lithium battery depending on the chosen battery technology, the actual discharge curve of each battery may vary.

Sealed Lead Acid Battery Applications from xtronics.com

At 50% charged stage, the output voltage of the battery is around 24v. The first part is the dc segment. Constant current discharge curves for a 550 ah lead acid battery at different.

Source: www.solarpaneltalk.com

The discharge process can also be divided into three parts: This brings the cost per cycle of lithium.

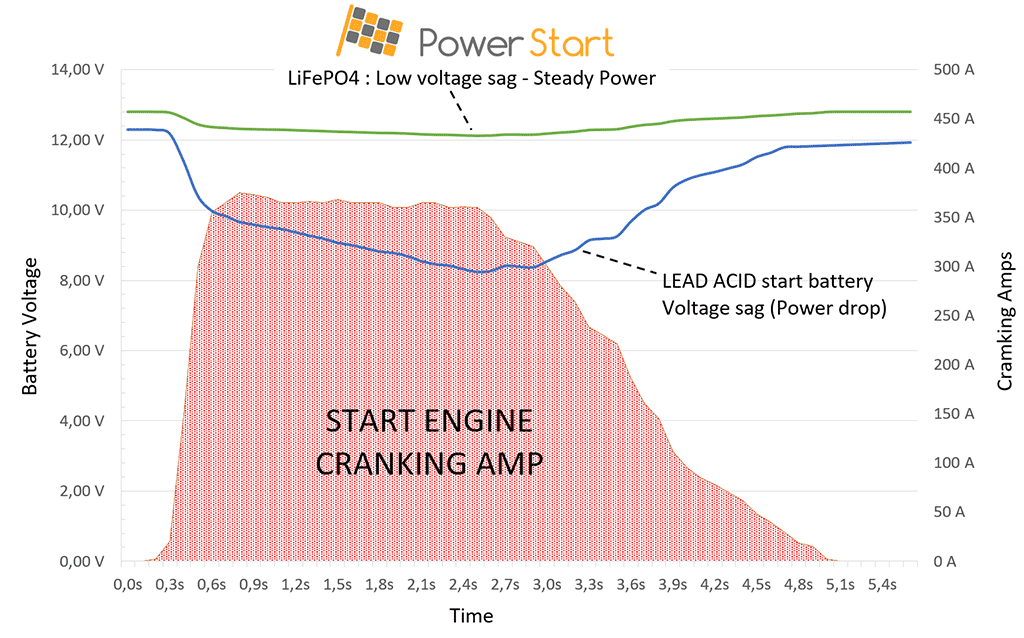

Source: www.powertechsystems.eu

Here, i take two examples to explain the same. The graph below shows that the effective capacity of a deep discharge lead acid battery is almost doubled as the discharge rate is reduced from 1.0c to 0.05c.

Source: www.powertechsystems.eu

Most sealed batteries are designed for a 50. If the voltage of a 12v lead acid sits below 10v or so for a substantial amount of time its dead.

Source: xtronics.com

Following is the matlab script for discharge of lead acid battery. This brings the cost per cycle of lithium.

Source: frittliv.autonomtech.se

The main function of the batteries or energy storage devices is as an alternative to the power source [1,2]. As seen from the characteristics given in figures 1 and 2, for the vrla batteries the end of discharge value is 10 v, standby charge value is 13.6 v,.

Source: www.switching-powers.com

Figure 4 shows a typical battery capacity versus discharge rate. The effectiveness of charging is similarly influenced by the rate of charge.

Source: www.alibaba.com

One of the subjects to be. In the long run, the cost savings are huge.

Source: www.powertechsystems.eu

If you look at the discharge curve of lead acid products you will notice that the battery voltage is proportional to the state of charge (soc) of the battery and that at 50% dod the voltage is always in the region of 2.00volt per cell and (12volt) (24volt) (36volt) (48volt) for respective bank sizes. This brings the cost per cycle of lithium.

Source: www.researchgate.net

The discharge voltage curves may be depressed by as much as 0.5 vdc from those shown on the graph. However, by cycle life, capacity decay, and other aspects of analysis, the same cost of lifepo4 battery use time longer.

At 50% Charged Stage, The Output Voltage Of The Battery Is Around 24V.

Function e_oc=open_circuit_voltage_la(x,n) % find the open circuit voltage of a lead acid % battery at any value of depth of discharge % the depth of discharge value must be between % 0 (fully charged) and 1.0 (flat). The discharge voltage curves may be depressed by as much as 0.5 vdc from those shown on the graph. The effectiveness of charging is similarly influenced by the rate of charge.

Following Is The Matlab Script For Discharge Of Lead Acid Battery.

Constant current discharge curves for a 550 ah lead acid battery at different. However, by cycle life, capacity decay, and other aspects of analysis, the same cost of lifepo4 battery use time longer. One of the subjects to be.

Your 12V Battery Is Constructed From 6 2V Batteries Connected In Series, You Witnessed One Cell Being Drained To Zero.

, a manufacturer of sealed lead acid battery, might. The cost of ownership when you consider the cycle, further increases the value of the lithium battery when compared to a lead acid battery. If the voltage of a 12v lead acid sits below 10v or so for a substantial amount of time its dead.

Lithium Has Ten Times The Cycle Life Of Sla Under Most Conditions.

Ideally the manufacturer supplies the discharge rates on the battery datasheet. For the 24v lead acid battery example shown in figure 1, a battery which is 100% charged will have an output voltage of around 25.6 volts. For discharge times less than one hour (high c rates) the effective capacity falls off dramatically.

The Discharge Process Can Also Be Divided Into Three Parts:

The second most notable difference between sla and lithium is the cyclic performance of lithium. Typical discharge curve (voltage versus % charge) for a 24 volt lead acid battery. November 11, 2016, 05:06:05 pm ».
